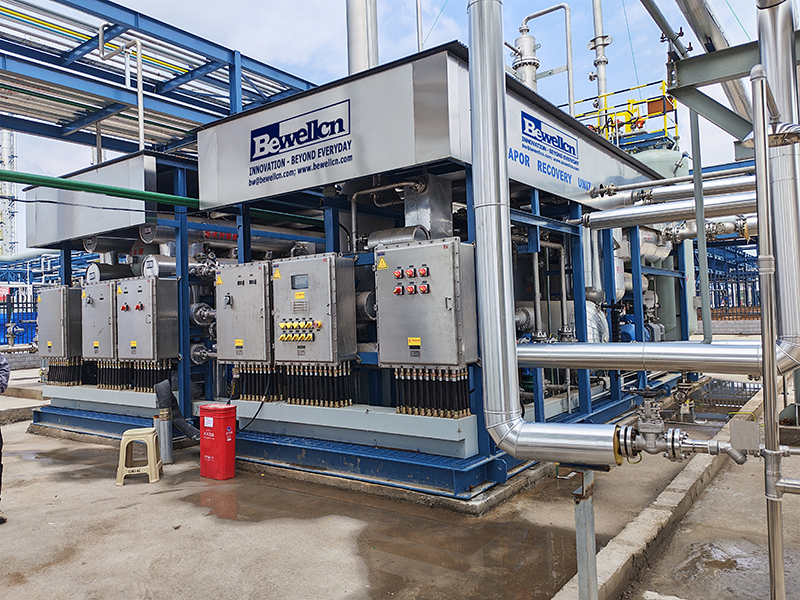

Bewellcn Vapor Recovery Skid

Bewellcn Vapor Recovery Skid

Rated capacity (Nm³/h): 200, 300,400 or based on project requirement

Operating flexibility (%): 30%～110%

Treatment process: “Condensation + Adsorption”

Volatile gas medium: Gasoline, Jet fuel volatile gas, Methanol, ethanol or other VOCs

Inlet gas concentration (%): Maximum saturation concentration

Inlet gas temperature (°C): Ambient temperature

Unit start/stop pressure (Pa): +200/-200 (adjustable on-site)

Power supply: 380V, 50Hz, three-phase five-wire system

Unit operating ambient temperature (°C): -20～40

Minimum refrigerant evaporation temperature (°C): -75

Adsorbent type: Activated carbon

Gas treatment efficiency: ≥97% (inlet gas concentration is saturation concentration)

Emission concentration: Non-methane hydrocarbons ≤50mg/m³, benzene ≤2mg/m³, toluene ≤8mg/m³, xylene ≤10mg/m³

Explosion-proof rating: Exd II BT4
