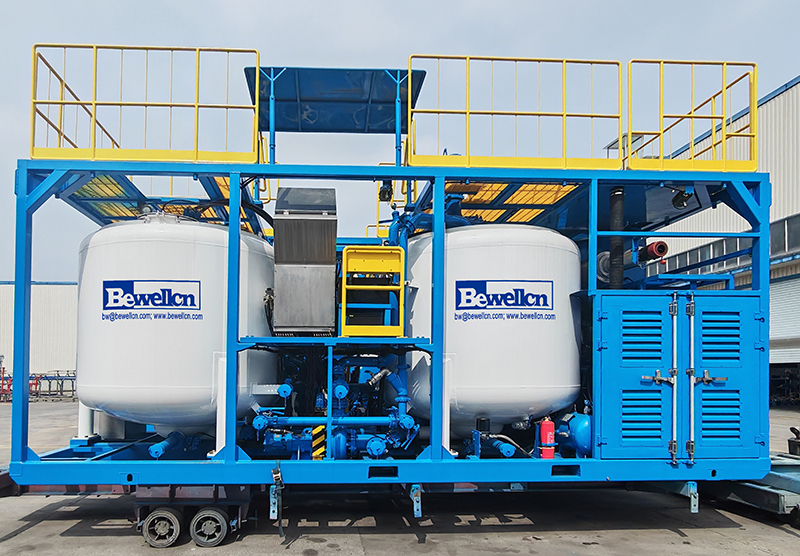

100BBL Batch Mixer Tank Skid

100BBL Batch Mixer Tank Skid

• The batch mixing skid utilized the latest mixing and density control technology in the world.
• It includes an anti-impact frame, a 308BHP auxiliary power unit and close-loop hydraulic system, two 50bbl batch tanks each equipped with paddle agitator, stainless steel control console and all required piping and manifold.
• All components and systems will be assembled in a manner that will provide easy access for maintenance. The skid is capable of mixing slurry up to 2.5 g/cm3 (21 PPG).
• This system is designed for minimum maintenance and operating in extremely harsh environment with temperatures ranging from -20℃ to 50℃ and relative humidity up to 90%

• Weight	16t
  Dimension, L x W x H, mm	7800x2500X3200
  Density Range	2.64g/cm3(22PPG)
  Operation Temperature	-20ºC～50ºC
  Continuous working time At Max. flow rate	>3 Hours

• The skid consists of the following:
  • One (1) bottom and anti-impact frame
  • One (1) Power unit, include CAT C9.3B engine.
  • One (1) Hydraulic system
  • Two (2) 50bbl Batch Mixing Tanks
  • Two (2) SERVA SCP 6×5 centrifugal pumps (cement mixing recirculating and boost)
  • One (1) Fuel day tank 70gal
