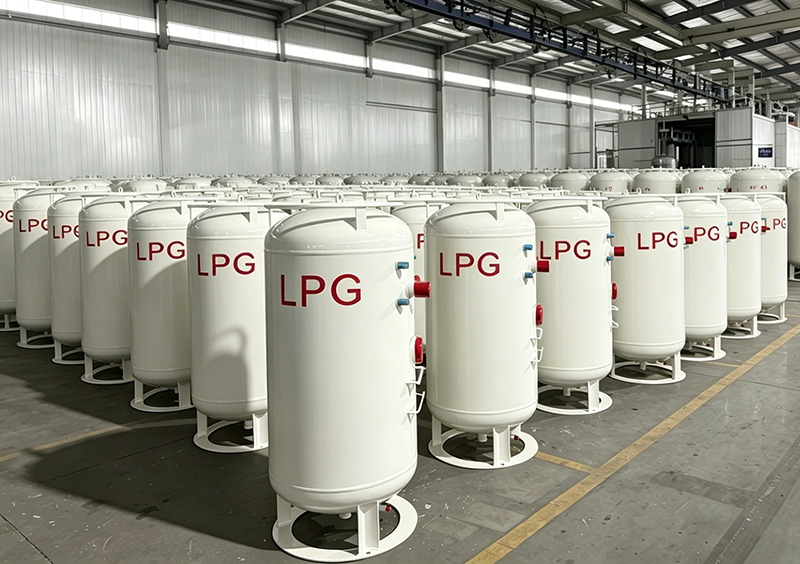

LPG Vertical Cylinder
LPG Vertical Cylinder Fabrication Code: ASME Sec VIII DIV1, E2023 Type: Horizontal Transport Medium: LPG Filling Liquid Property: Flammable, Explosion Volume: refer to following table Filling Ratio: 80%@ 15.6℃ Design Pressure: 1.724 MPa (250Psi) Hydrant Test: 2.25Mpa (325Psi) Leakage Test: 1.724 MPa (250Psi) Design Temperature : 51.7 ℃ (125F) Min Material Temperature : -29 ℃ (-20F) Fabrication Material: SA414M Gr G Insulation: N/A Surface Treatment: Blasting, Paint Corrosion Allowance: 0mm Heat Treatment: N/A Serial NO. Water capacity Diameter…
Product Details
LPG Vertical Cylinder
- Fabrication Code: ASME Sec VIII DIV1, E2023
- Type: Horizontal
- Transport Medium: LPG
- Filling Liquid Property: Flammable, Explosion
- Volume: refer to following table
- Filling Ratio: 80%@ 15.6℃
- Design Pressure: 1.724 MPa (250Psi)
- Hydrant Test: 2.25Mpa (325Psi)
- Leakage Test: 1.724 MPa (250Psi)
- Design Temperature : 51.7 ℃ (125F)
- Min Material Temperature : -29 ℃ (-20F)
- Fabrication Material: SA414M Gr G
- Insulation: N/A
- Surface Treatment: Blasting, Paint
- Corrosion Allowance: 0mm
- Heat Treatment: N/A
| Serial NO. | Water capacity | Diameter (mm) | Length (mm) | Height (mm) | Leg Distance | Leg Width | Height without Cap | Minimum space | Weight (Approx.) | 40’HQ Load Qty. |
| V101 | 216L (57 US GAL) | 609 | 878 | ~1010 | 910 | 19 | ~1070 | 1050 | 90 Kg | 152 |
| V102 | 340L (89.8 US GAL) | 761 | 906 | ~1037 | 1017 | 19 | ~1097 | 1077 | 125 Kg | 96 |
| V103 | 454L (120 US GAL) | 761 | 1166 | ~1300 | 1280 | 19 | ~1360 | 1040 | 150 Kg | 75 |
| V104 | 1000L (264 US GAL) | 1065 | 1350 | \ | \ | 19 | ~1550 | 20 | 330 Kg | 28 |
