Liquid Nitrogen Pump Trailer-90K
Liquid Nitrogen Pump Trailer-90K Key Features Mobile Trailer Design or User Option Explosion-proof property can meet the ATEX Zone II: option Skid Design for Pump and Vaporizer Control System Inside Diesel Generator Inside Model: 90K 180K Components: One skid One engine One gear box One triplex Nitrogen pump One Liquid Nitrogen pot vaporizer One boost pump Hydraulic system One Control console Certifications (Option): API Explosion-proof type: Option Specification: 180K Max working flow rate:122L/min(LN2)，180,000 SCFH(GN2) 90K Max working flow rate:60L/min(LN2)，90,000 SCFH(GN2)…
Product Details

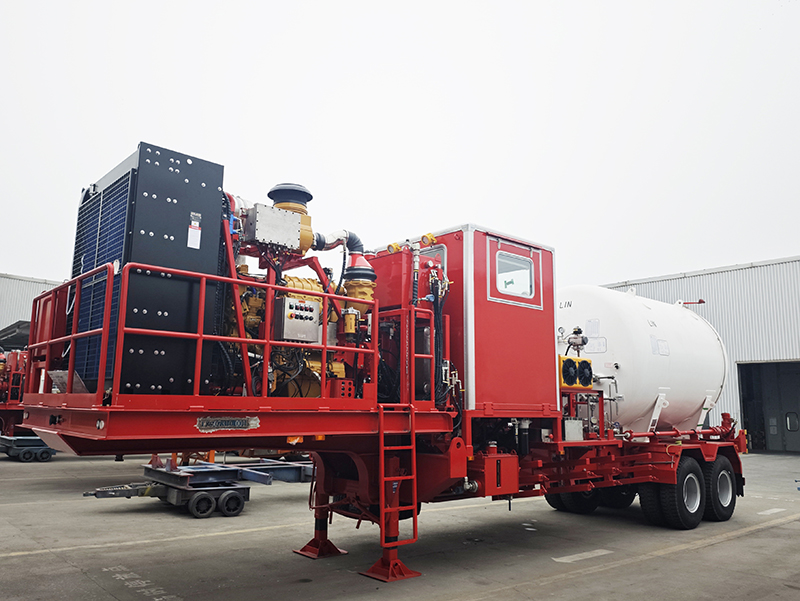

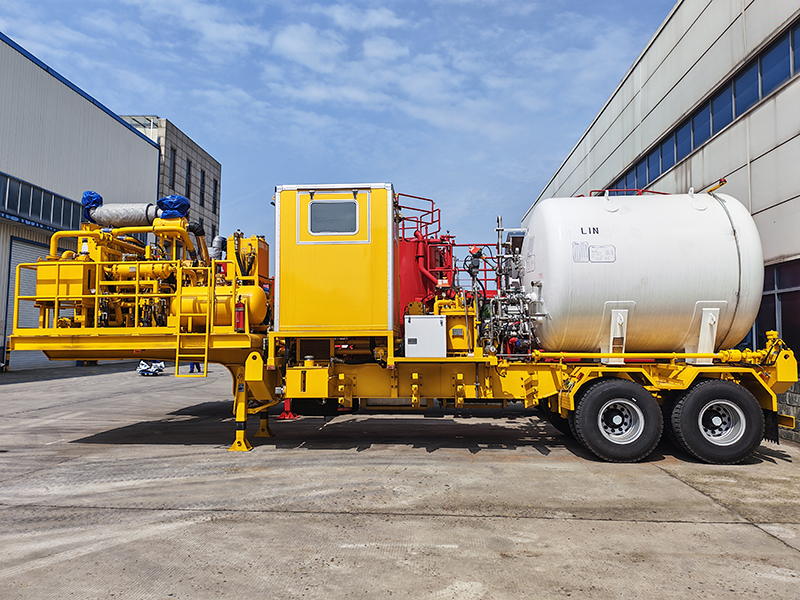

Liquid Nitrogen Pump Trailer-90K
Key Features
- Mobile Trailer Design or User Option
- Explosion-proof property can meet the ATEX Zone II: option
- Skid Design for Pump and Vaporizer
- Control System Inside
- Diesel Generator Inside
Model:
- 90K
- 180K
Components:
- One skid
- One engine
- One gear box
- One triplex Nitrogen pump
- One Liquid Nitrogen pot vaporizer
- One boost pump
- Hydraulic system
- One Control console
Certifications (Option):
- API
- Explosion-proof type: Option
Specification:
- 180K Max working flow rate:122L/min(LN2)，180,000 SCFH(GN2)
- 90K Max working flow rate:60L/min(LN2)，90,000 SCFH(GN2)
- Discharge temperature: 15℃～25℃
- Engine model: Caterpillar C15 diesel engine
