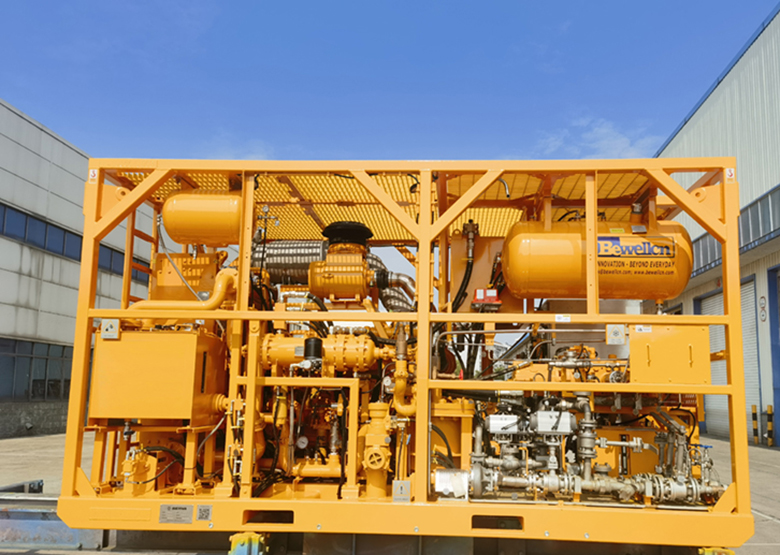

Liquid Nitrogen Pump Skid-90K

Liquid Nitrogen Pump Skid-90K

Key Features

• Containerized Design or User Option
• Offshore certificate: Option or based on user requirement
• Explosion-proof property can meet the ATEX Zone II: option
• Skid Design for Pump and Vaporizer
• Control System Inside
• Diesel Generator Inside

Model:

• 90K
• 180K

Components:

• One skid and anti-impact
• One engine
• One gear box
• One triplex Nitrogen pump
• One Liquid Nitrogen pot vaporizer
• One boost pump
• Hydraulic system
• One Control console

Certifications (Option):

• API
• DNV2.7.1-Option

Specification:

• Max working flow rate：122L/min(LN2)，180,000 SCFH(GN2)
• Discharge temperature: 15℃～25℃
• Engine model: Caterpillar C15 diesel engine
• Total Weight: ≤12 T

Tank Container Size:

Length: 4500mm

Width: 2400mm

Height: 3200mm
