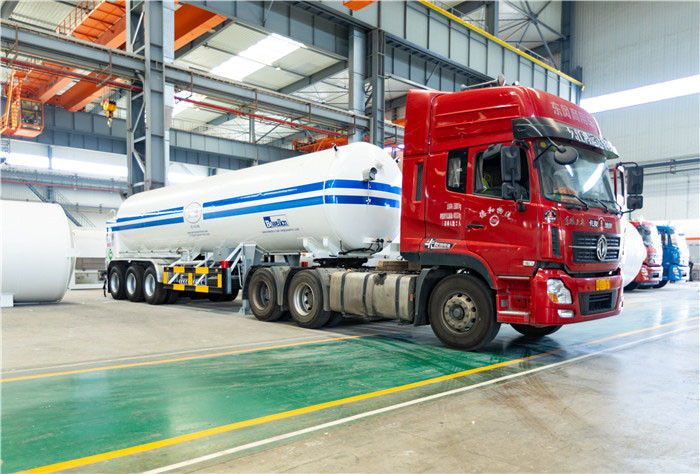

26m3 Liquid Oxygen Semi Trailer

26m3 Liquid Oxygen Semi Trailer

Key Features

Rigid Connection on Chassis

Including Ambient Vaporizer for Unloading

All Valves in Locked Valve Box

JOST Support

Compact design, with Standard Frame Protection

Certifications:

China GB Standard or ASME standard based on user options

Specification:

Work Pressure: 3bar/ 8.0bar/ 16bar

Full Volume: 26,100L

Filling Rate: 92%

Effective Volume: 24.010mL

Inner Tank Design Temperature: -196℃

Jacket Tank Design Temperature: -20℃~+50℃

Insulation: Vacuum with multi-layer wrap

Stored Medium: Liquid Oxygen, Liquid Nitrogen

Empty Weight: 12,410kg

Inner Tank Material: S304 08

Jacket Tank Material: Q345R

Tank Container Size:

Length: 11830mm

Width: 2520mm

Height: 3455mm
